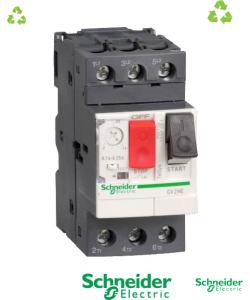

GV2ME20 | SCHNEIDER ELECTRIC Motor circuit breaker

Motor circuit breaker, TeSys Deca, 3P, 13 to 18A, thermal magnetic, screw clamp terminals, button control

By SCHNEIDER ELECTRIC

References:

SCHNEIDER ELECTRIC : GV2ME20

SKU : kh015T851_DFR

Condition:

Refurbished

8.40€ Tax Excl.


Sold by kheoos

8.40€ Tax Excl.

Refurbished


Quantity

For this product, you can only order a maximum of items equal to 3

Availability : In-stock

3 articles remaining in stock
